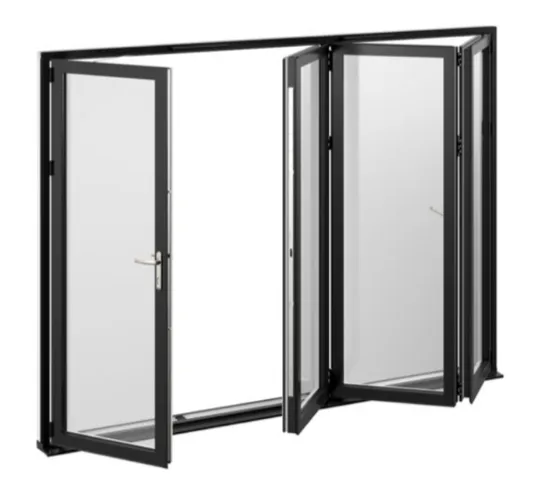

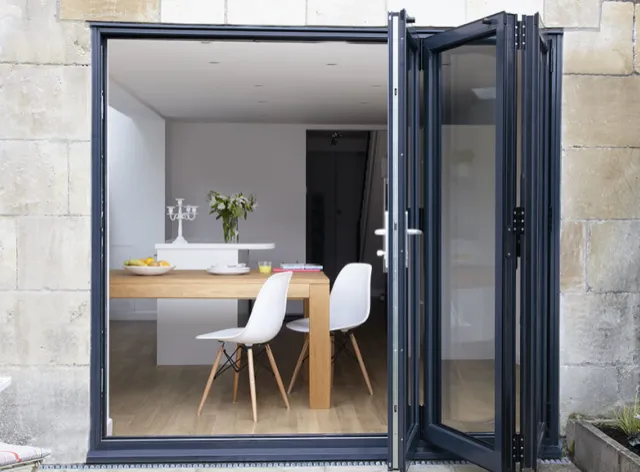

Bi-fold Doors

Triple glazed aluminum frame


» Up to 14 sashes: inward and outward opening
» Possibility of either even or odd number of sashes
» Option to embed the lower frame in the floor
» Maximum glazing thickness: 45 mm
» Opening possibilities
    Interior
        Up to 14 sashes
    Exterior
        Up to 14 sashes
    Possibility of corner sash at 90º without mullion
» Sections
    Frame – 73 mm / Sash – 73 mm
» Profile thickness
    Door 1.8 mm
» Polyamide strip length
    Frame 20 mm / Sash 30 mm
» Maximum dimensions/sash
    Width (L) = 1,200 mm
    Height (H) = 3,000 mm
» Maximum weight/sash
    120 kg

Please consult regarding maximum weight and dimensions for other opening types

» Finishes
    Possibility of dual colour systems
    Colour powder coating (RAL, mottled and rough)
    Wood effect powder coating
    Anti-bacterial powder coating
    Anodised
